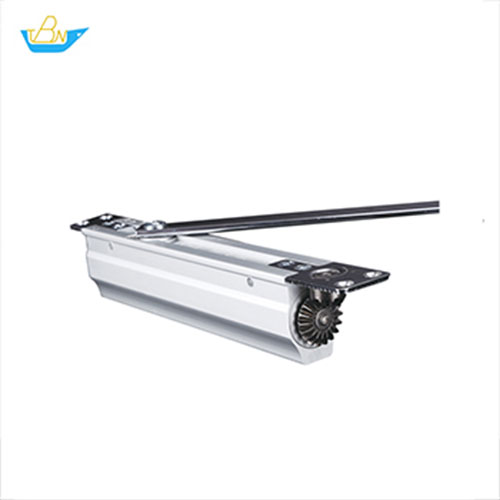

TB600 Suitable for indoor and outdoor doors such as wooden doors and metal doors, the shell is extruded by aluminum, CAM structure is used inside to make the door more portable and comfortable to open.
Description
TB600 Suitable for indoor and outdoor doors such as wooden doors and metal doors, the shell is extruded by aluminum, CAM structure is used inside to make the door more portable and comfortable to open.
Cam Action Technology Privides High efficiency,and easy open,safe and realiable closing power for door application ,Non handed Design is suitable for all applications
We are a Door Closer manufacturer in China and specialized in manufacturing door control products and has developed into a modern factory. Our products include concealed door closer, exposed door closer, CAM door closer, and we just produce high-quality door closer.
We are expecting become your long term partner in China.
Product advantages
We are manufacturer and supplier who specializes in producing high-quatity door closers. We have professional technical consultants to customize products for you if you need. The most sophisticated accessories are used for all products, stable performamce, cost-effective, all the goods will pass strict testing before shipment, strive to provide you with the best product quality; five-year warranty, minimum 500,000 service life and the most satisfactory after-sales service.
Main Technical Parameters
|
Brand Name: |
TBN |
Item No. : |
TB600 |
|
Material |
Aluminum Alloy |
Operator |
Hydraulic |
|
Closing Angle. |
120°to 15° |
Latching Angle |
15°to 0° |
|
Application Temperature |
-40°to 40° |
Service Test |
Over 1,000,000 cycles |
|
Max. Opening Angle |
120° |
Installation |
Concealed with Slider-rail |
|
Functions |
two-section speed,
Hold-Open and Back Check for optional |
Power Size |
Adjustable EN2 to EN4 |
|
Main Body |
L254mm* W37mm* H55mm
|
Installation of CAM Concealed Door Closer
|
Power Size |
Door width(mm) |
Door Weight(kg) |
|
EN2 |
750~850 |
20~45 |
|
EN3 |
850~1000 |
40~65 |
|
EN4 |
1000~1100 |
60~85 |
Product Feature of CAM Concealed Door Closer:
Factory price
Five-year warranty
Closing & latchingspeed, options for hold-open and Back check
Spring EN4,Over 1,000,000 cycles service life
Comply with GA 93-2004, 3C, UL228, EN1154 and CE standard
Concealed installation for wooden dooror metal door
Optional color: oxidation color, spray color
Installation of CAM Concealed Door Closer:
Product Size
Power Size
| Door Width(mm)
| Door Weight(kg)
|
EN2
| ≤850
| ≤40
|
EN3
| ≤950
| ≤60
|
EN4
| ≤1100
| ≤80
|

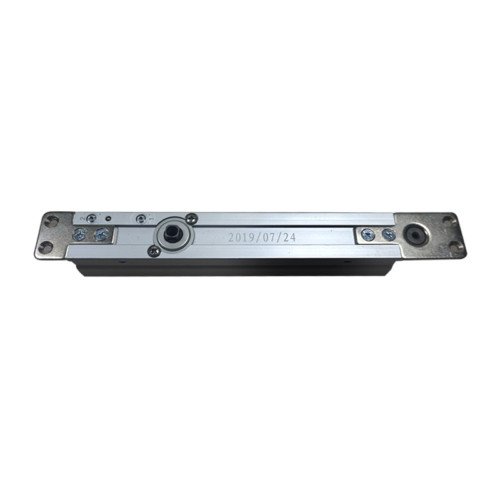

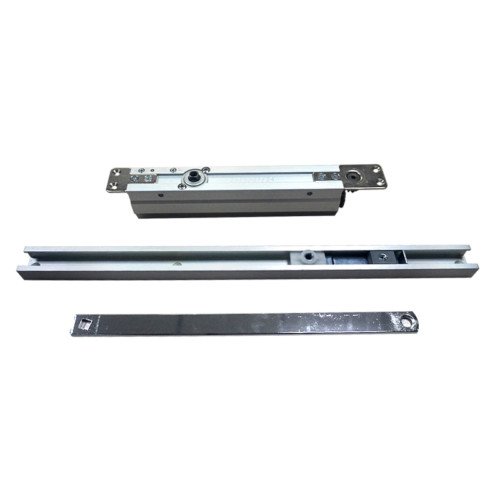

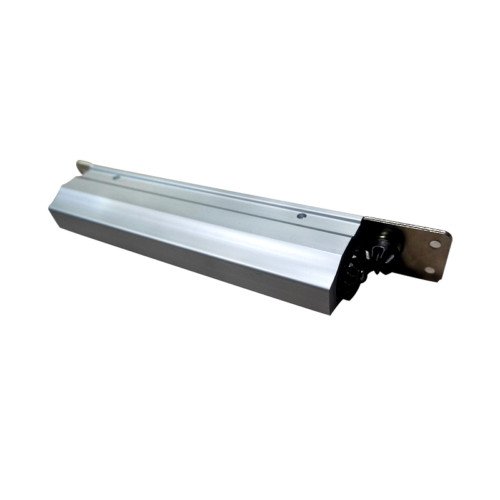

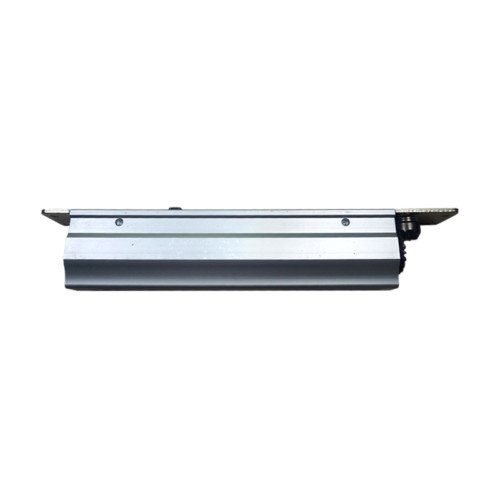

Product Details Showing
Product Feature of Aluminum Alloy CAM Door Closer:
Factory price
Five-year warranty
Closing & latchingspeed, options for hold-open and Back che
Spring EN4,Over 1,000,000 cycles service life
Comply with GA 93-2004, UL228, EN1154 and CE standard
Concealed and exposed installation for wooden dooror metal door
Optional color: oxidation color
Two Speed Calves on the front of door closer body,which hidden under of slider cover
Successful Case
Certification
TBN Door Control Products have acquired CE Certification compliance with European Standard EN1154,UL228 certification for American quality standard ;sour factory also achieved certification with ISO 9001 International Quality Management Standard to evidence and guarantee this projection Door Closer offering excellent safe quality & stable performance.
OUR SERVICE:
1. We will provide more precisely and efficientlyproduct and service according to clients’
2. We have professional technical team to ensure your product more better.
3. Check the raw material before starting production.
4. Have the random inspection during the processing.
5. Make the 100% inspection before the delivery.
Packing and Delivery
Packaging & Delivery Hydraulic Automatic Surface Mounted Door Closer:
Selling Units: Single item
Single package size: 31X9.5X5 cm
Single gross weight: 1.42 kg
Package Type: 1Set/ box,10 boxes/ carton.
